Tidy and beautiful
Visualizing Bayesian models with xarray and ArviZ
|
Colin Carroll, Freebird, Inc
|
|
Bayesian Mixer, December 13, 2018
|
What is Bayesian Inference?
$$
P(\theta | X) = \frac{P(X | \theta) P(\theta)}{P(X)}
$$
$$

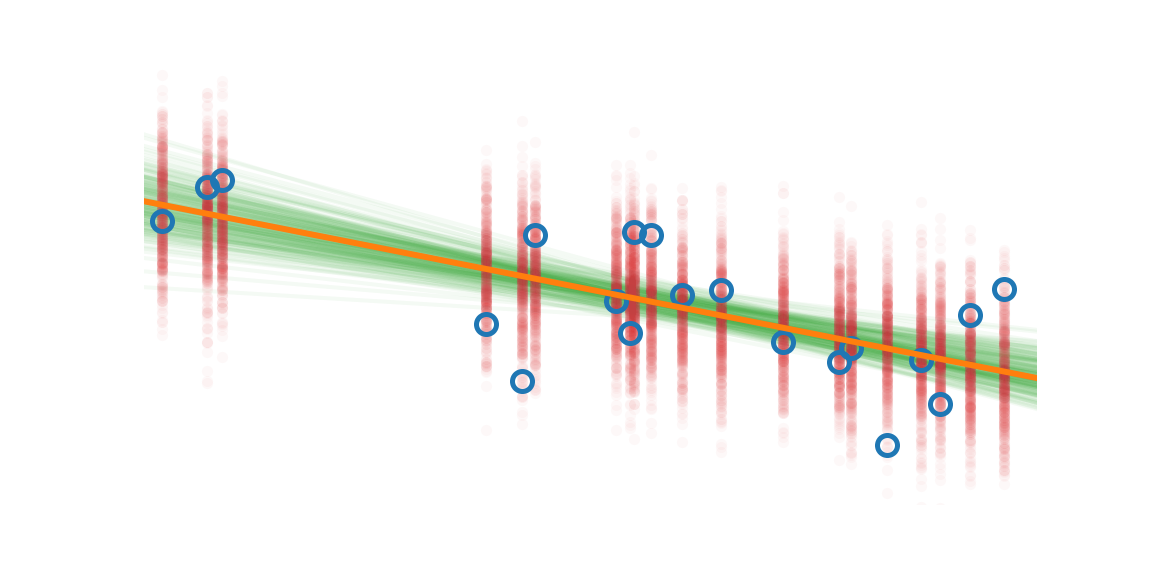

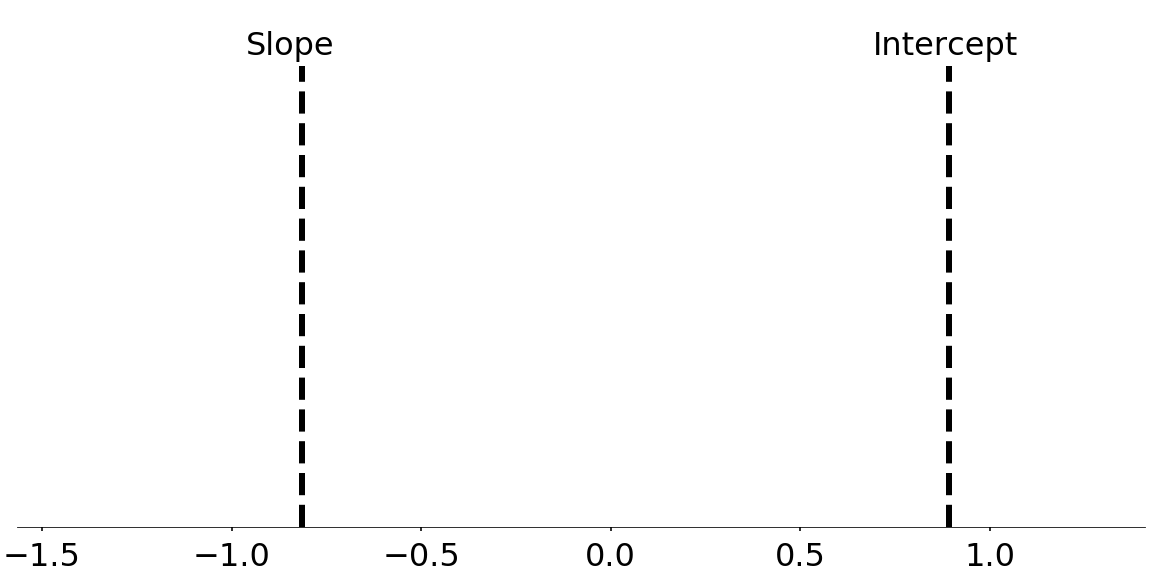

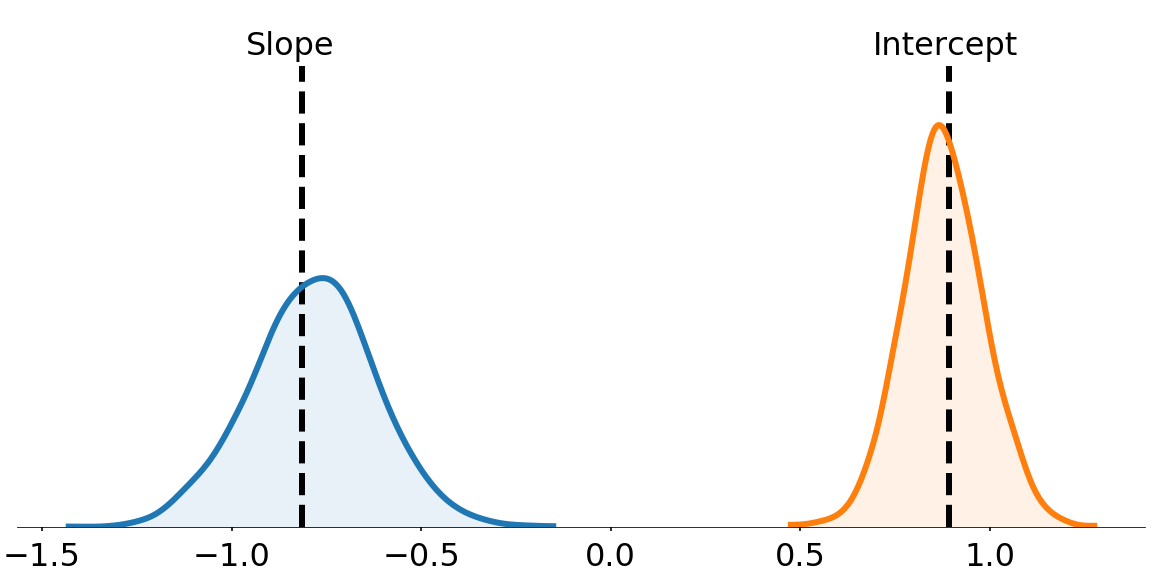

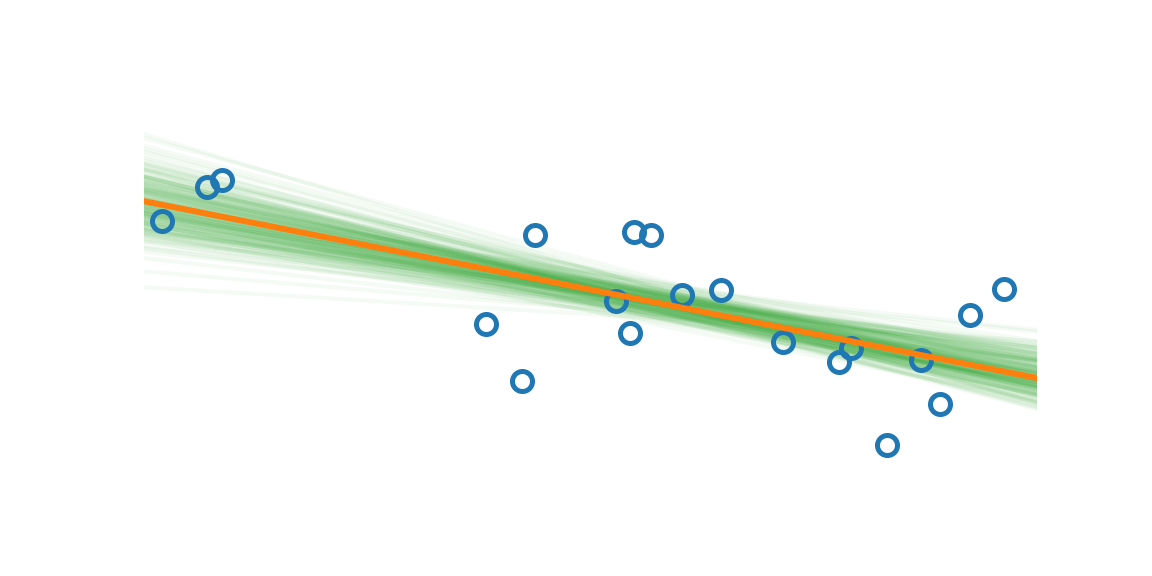

P(\text{slope, intcpt.} | x, y) = \frac{P(x, y | \text{slope, intcpt.}) P(\text{slope, intcpt.})}{P(x, y)}
$$
$$

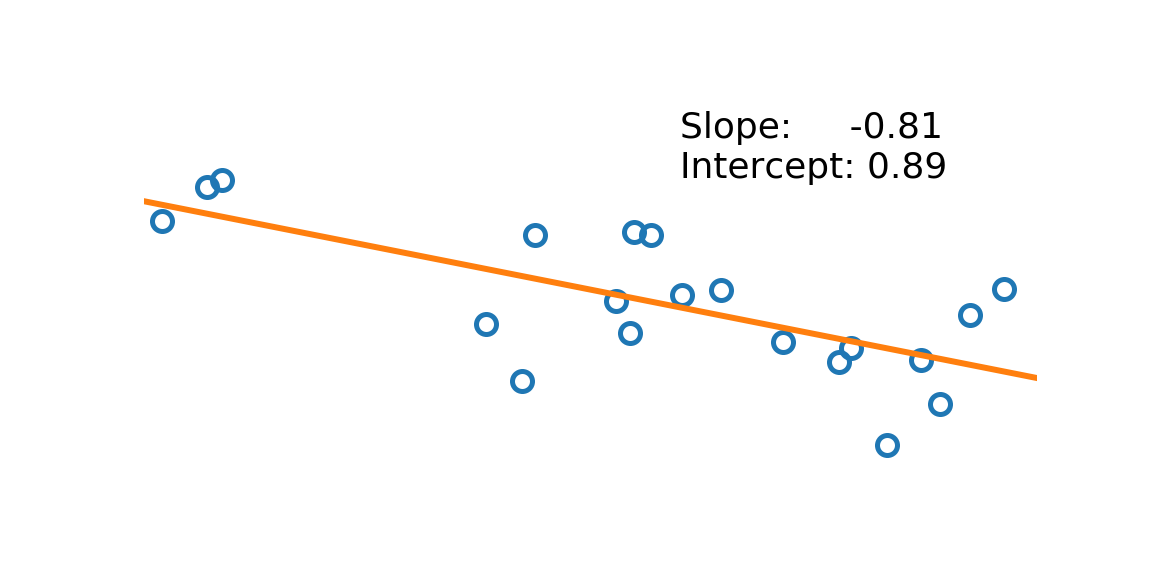

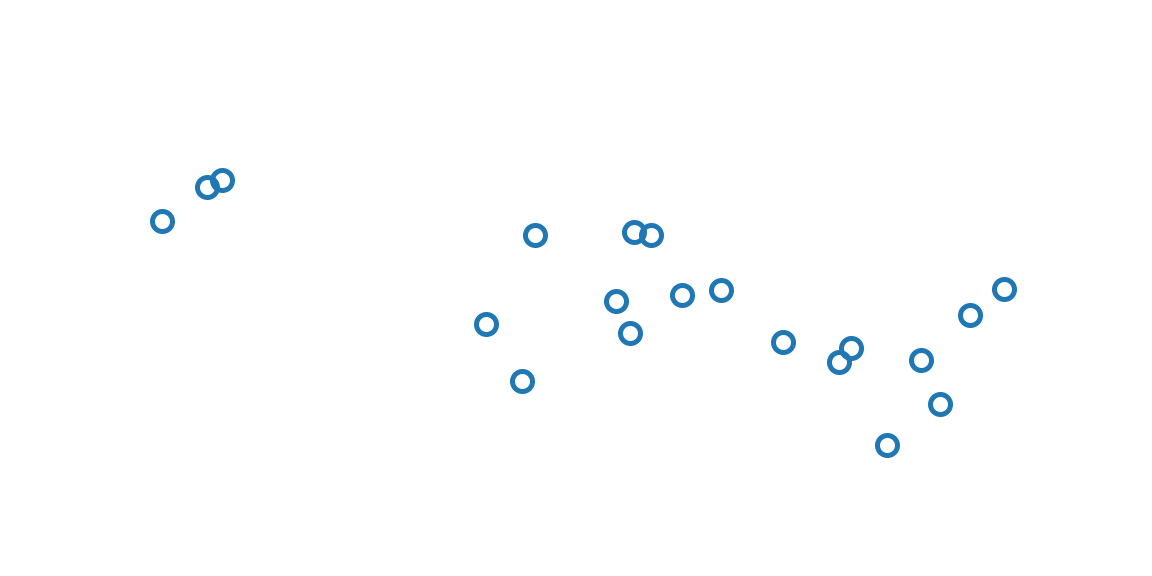

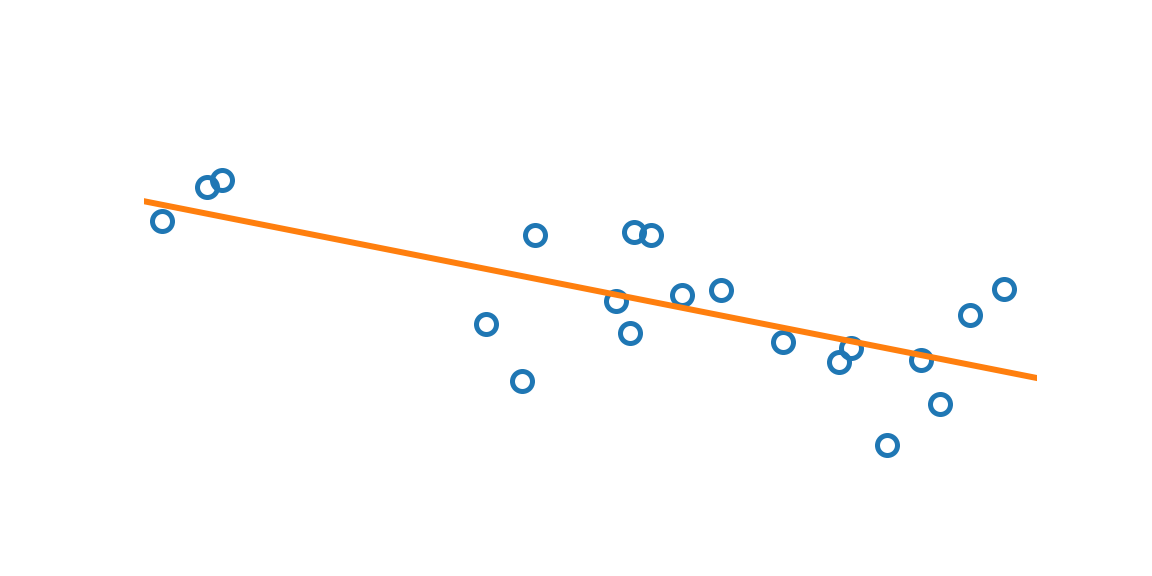

y = \text{slope} \cdot x + \text{intercept}
$$
What is
![]()
?
Visualization
x = np.random.rand(200)
y = np.random.rand(200)
data = {
'x': x,
'y': y,
'z': x - y,
}
Visualization

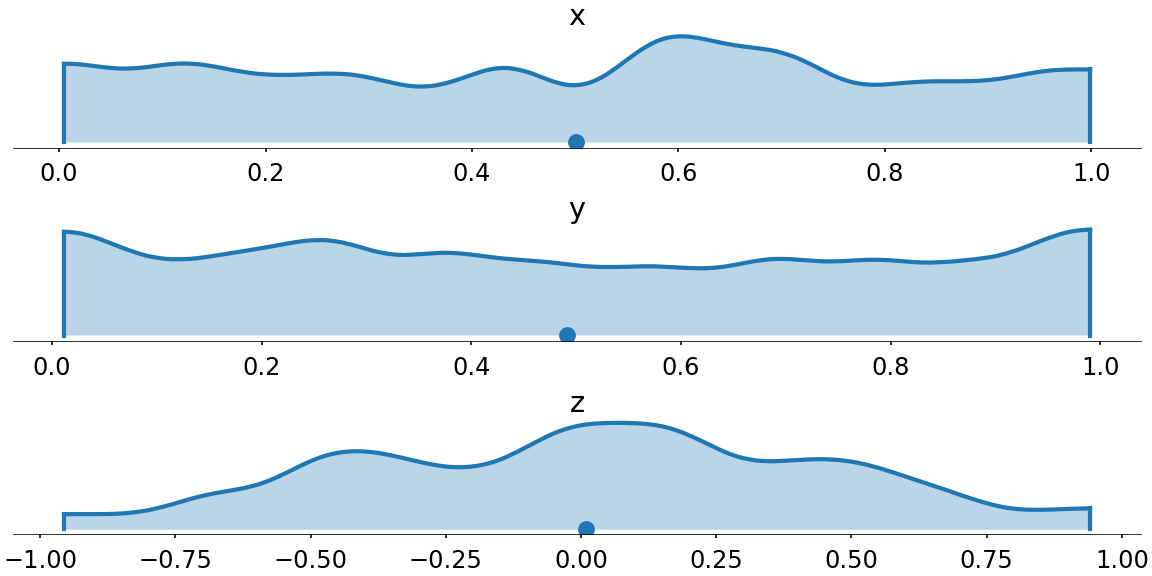

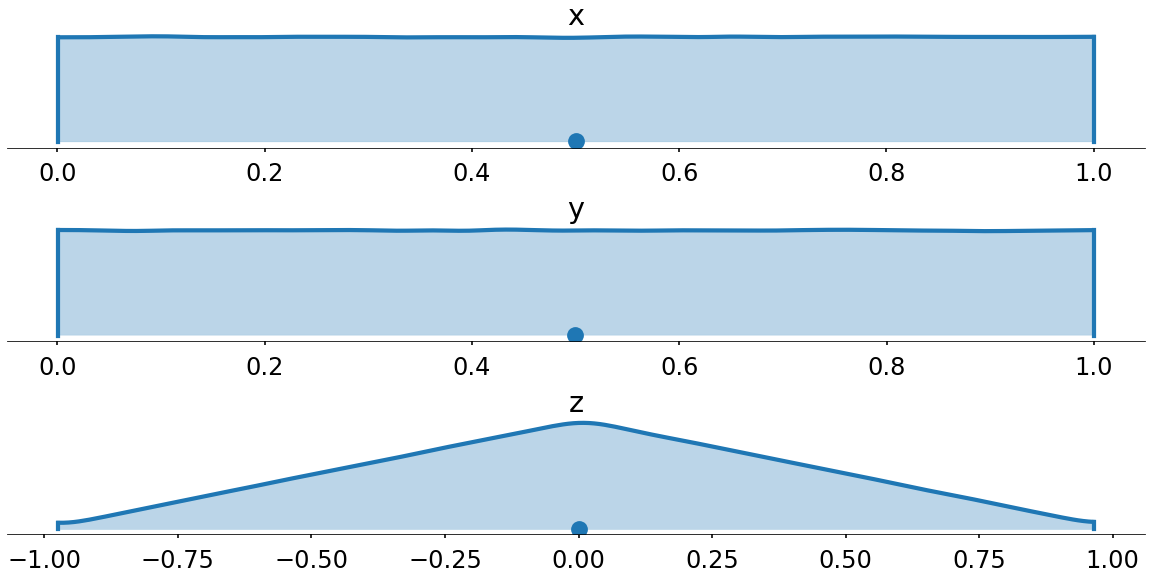

az.plot_density(...)
Visualization

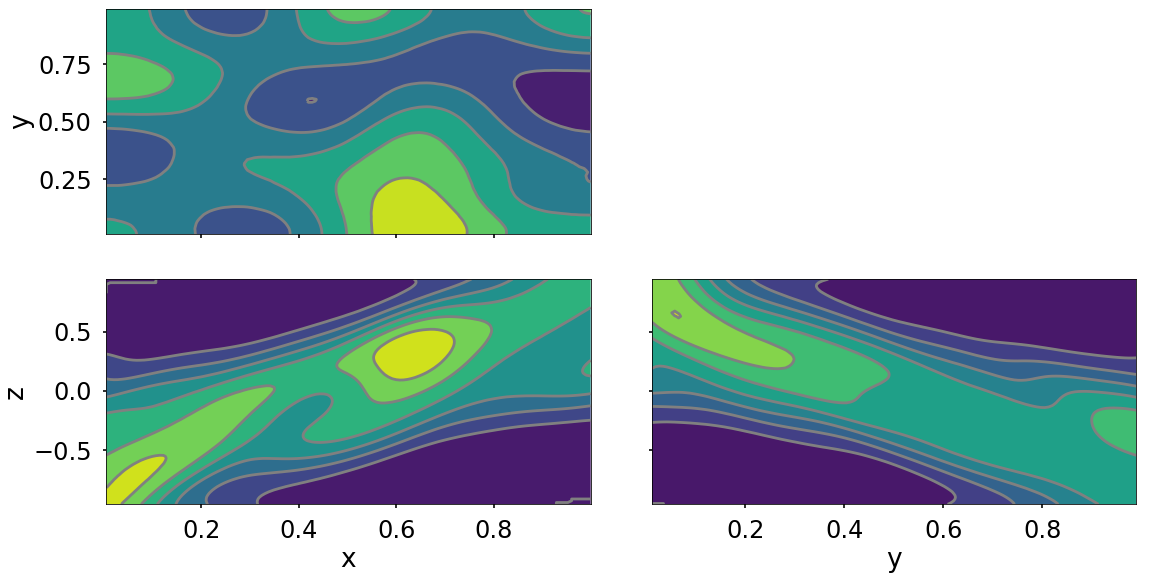

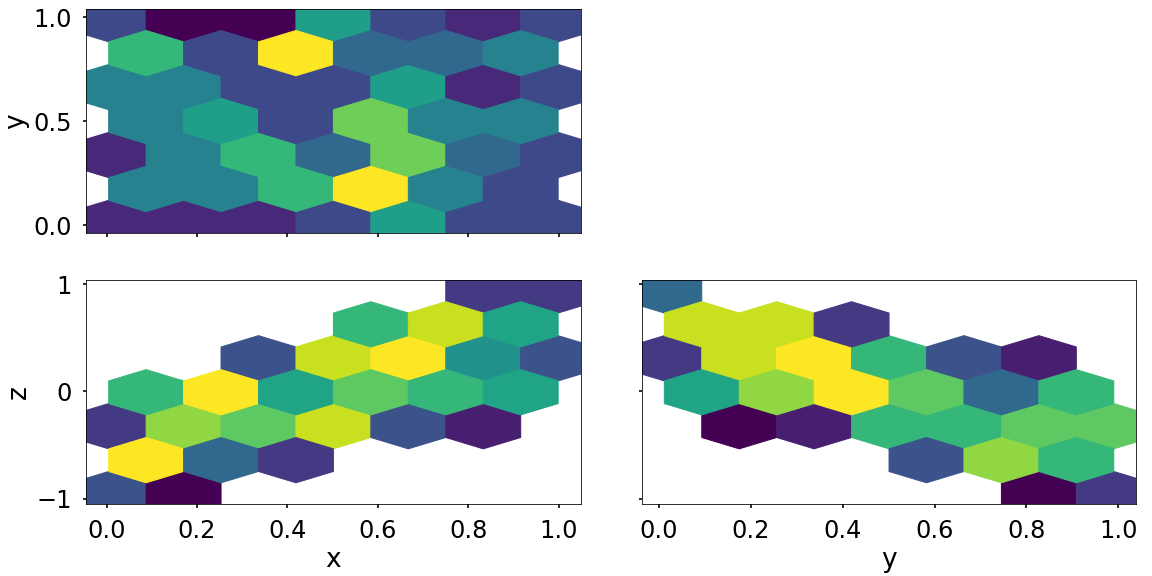

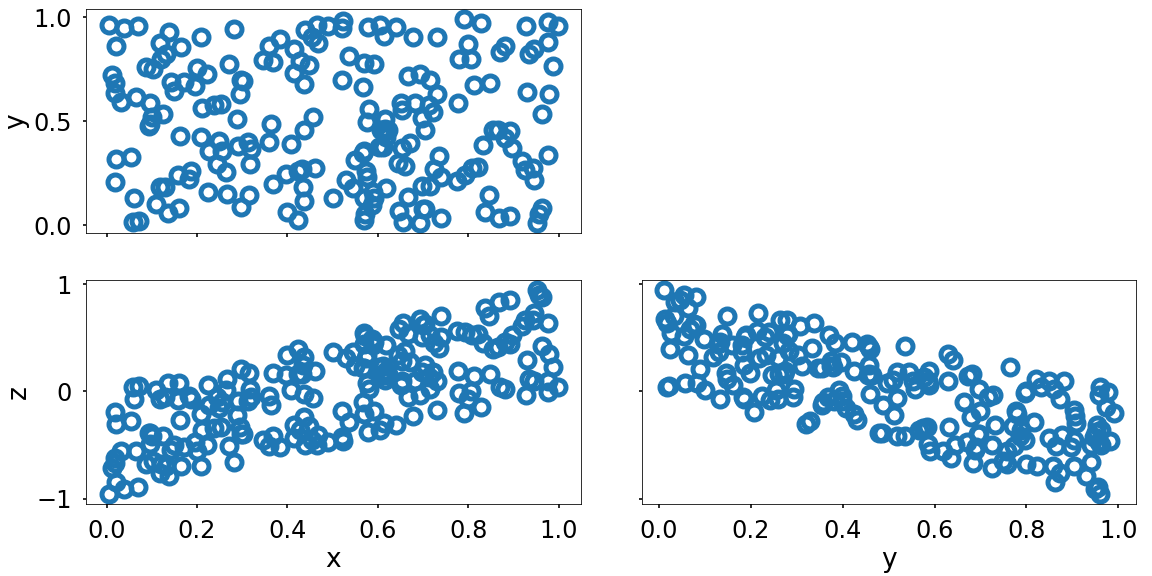

az.plot_pair(...)
Visualization

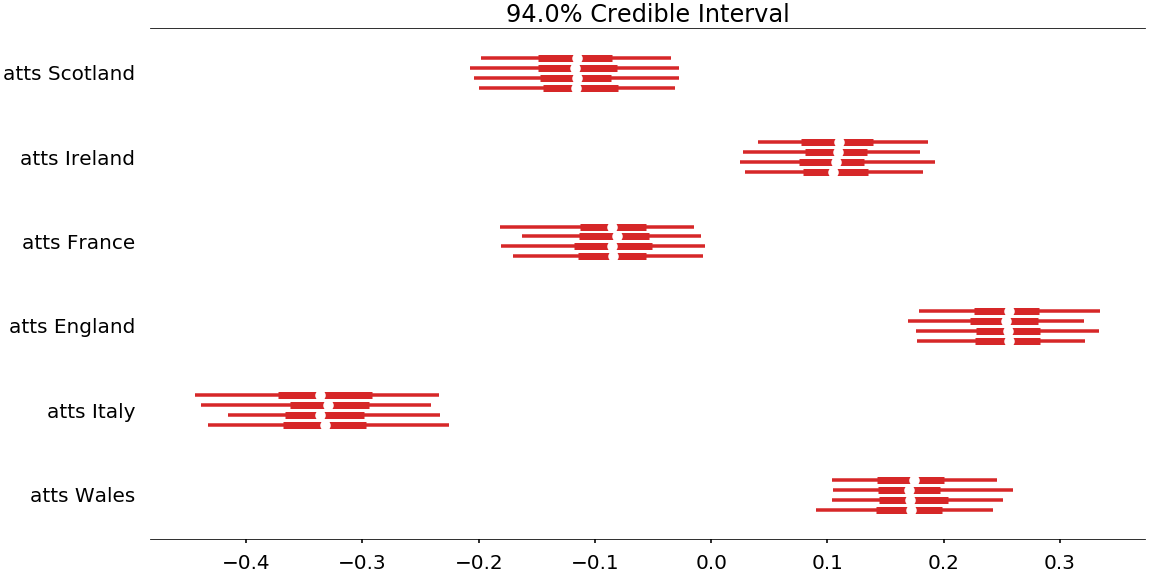

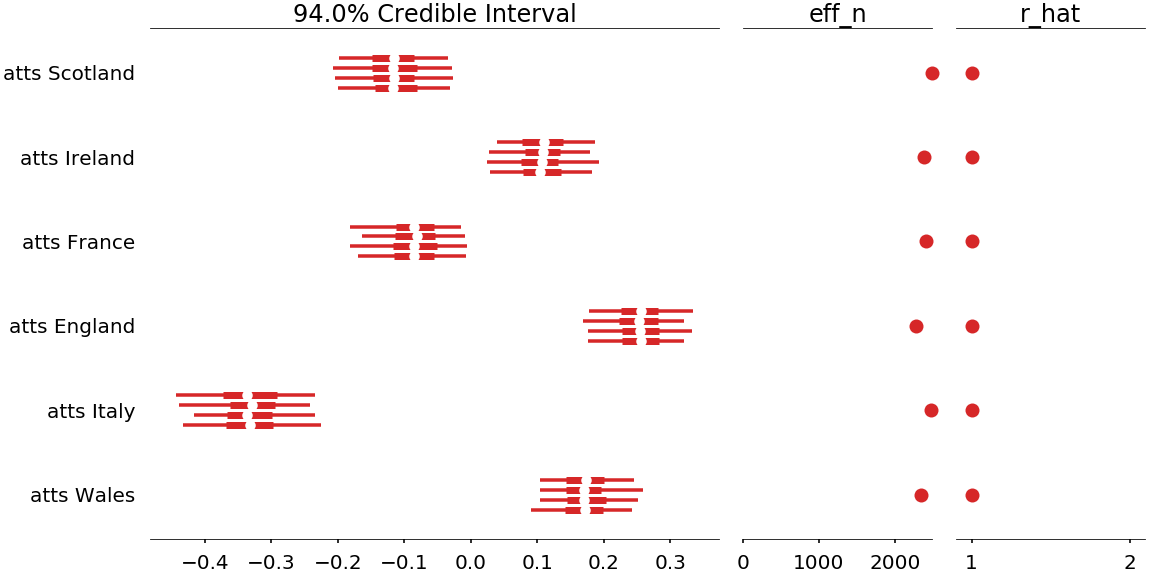

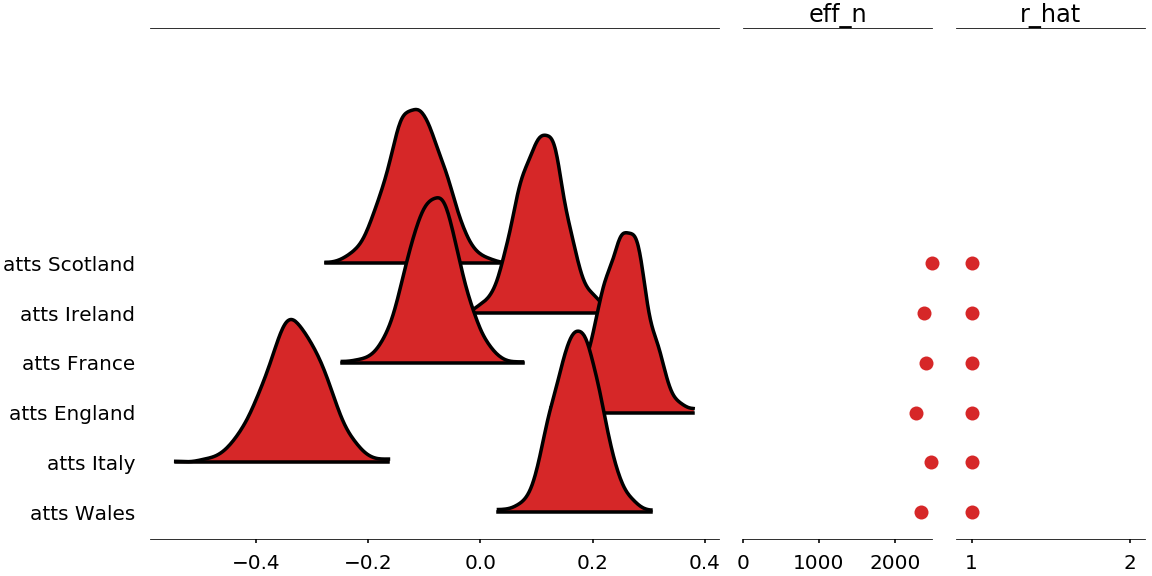

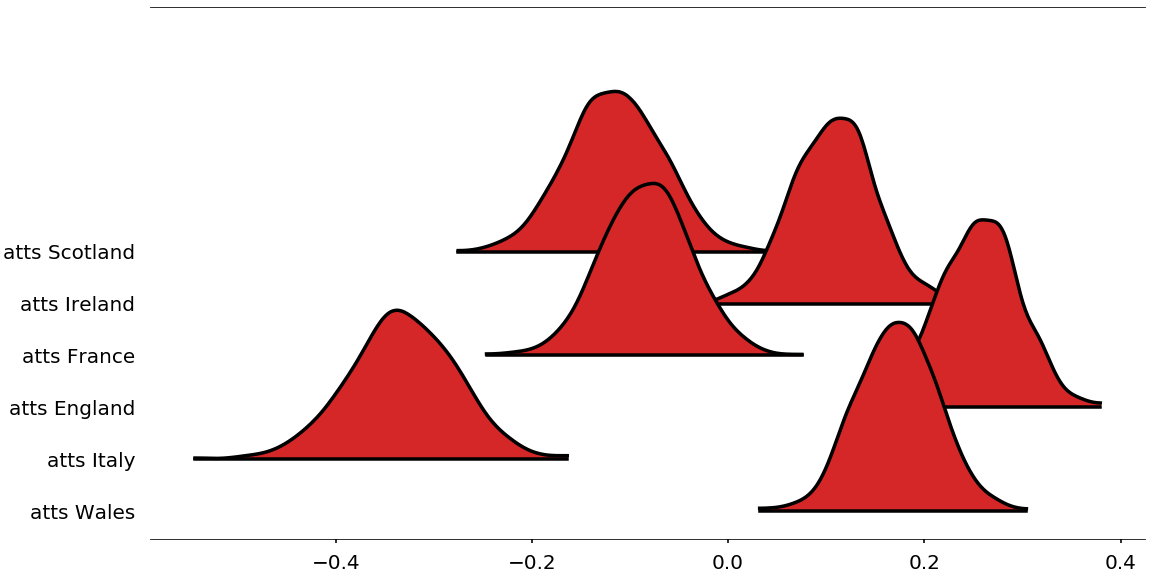

az.plot_forest(...)
Visualization

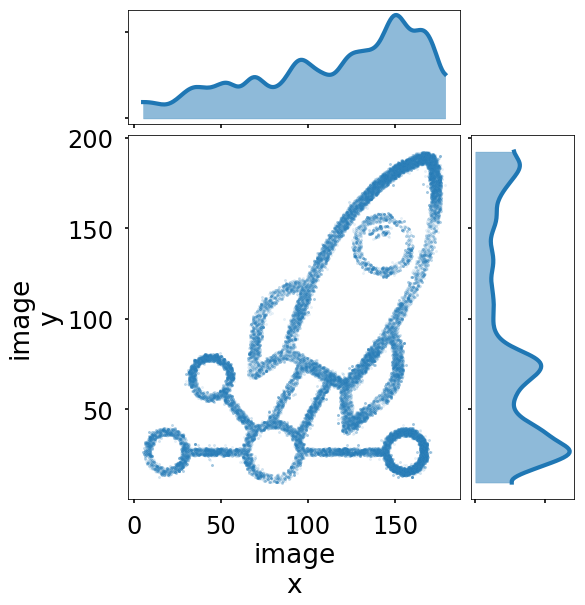

az.plot_joint(...)
Diagnostics
- Does the model fit the data?
- Does the algorithm fit the model?
az.load_arviz_data('centered_eight')
az.load_arviz_data('non_centered_eight')
Diagnostics

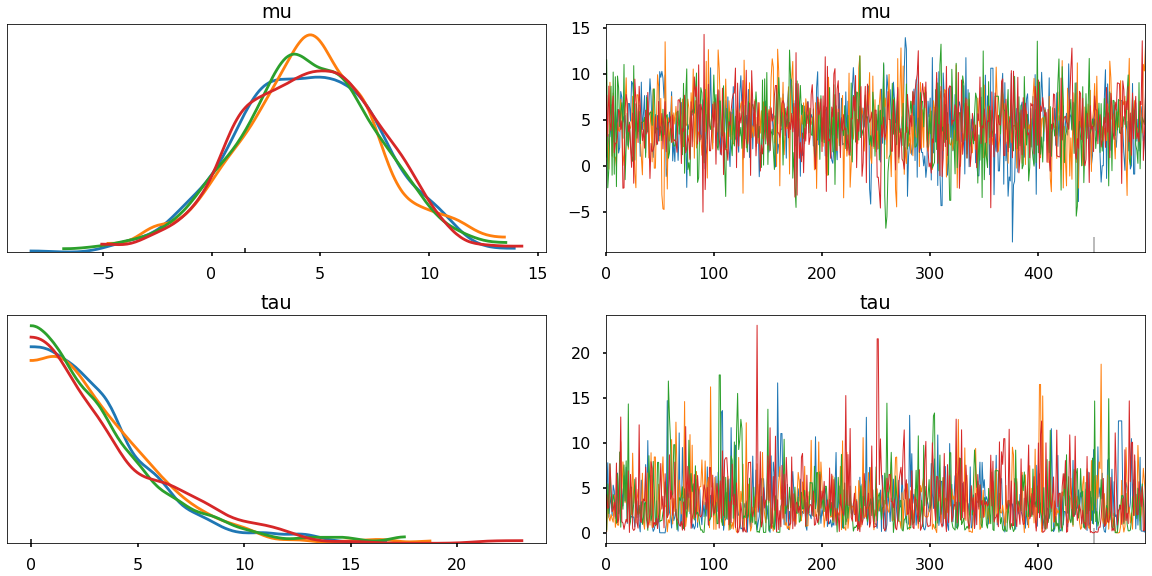

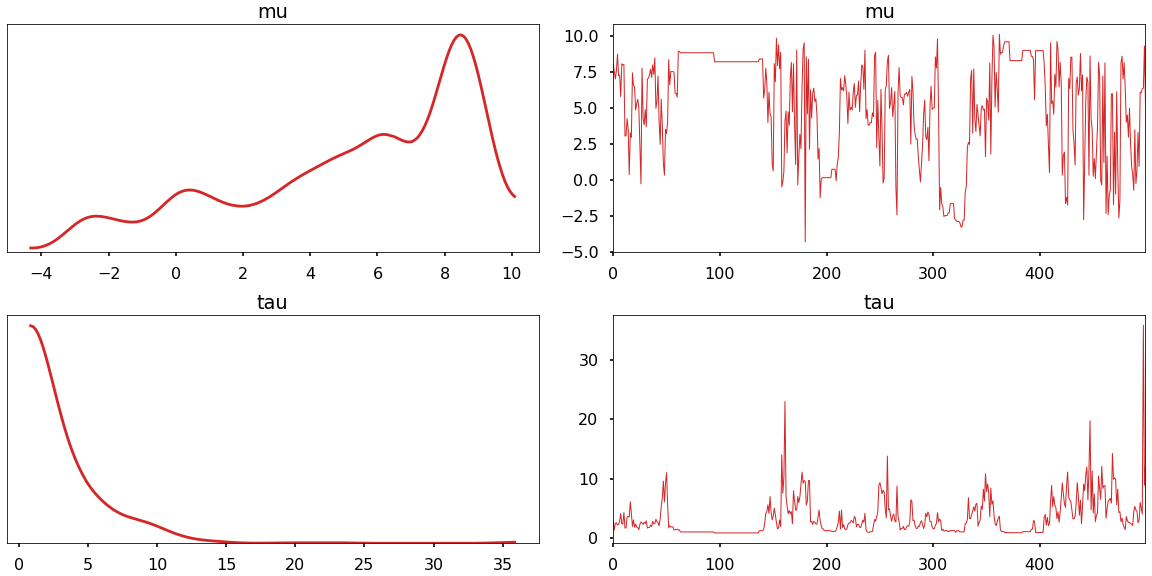

az.plot_trace(...)
Diagnostics

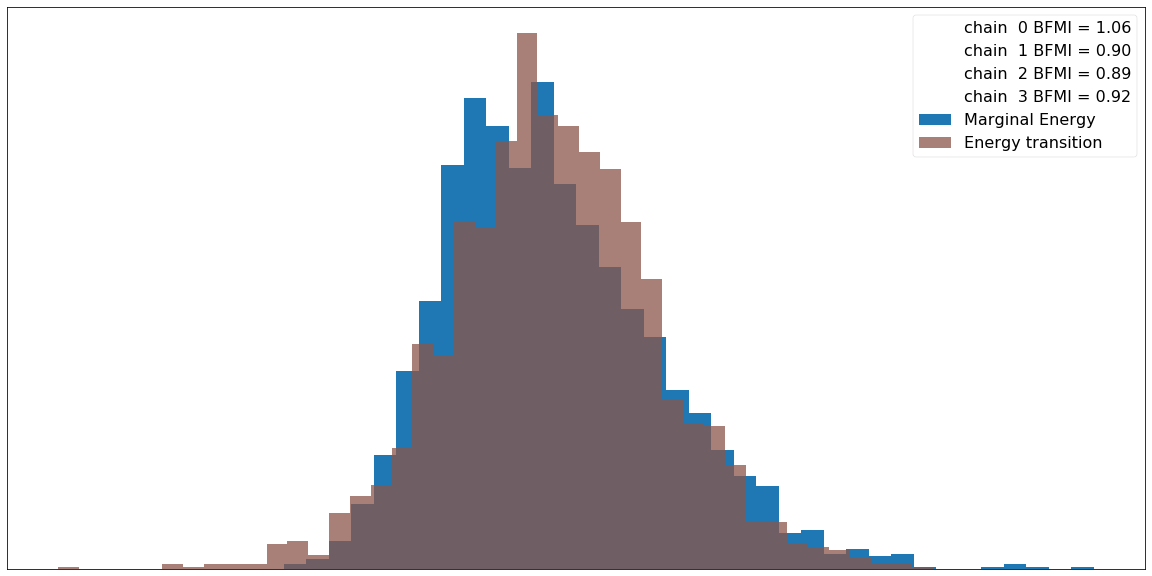

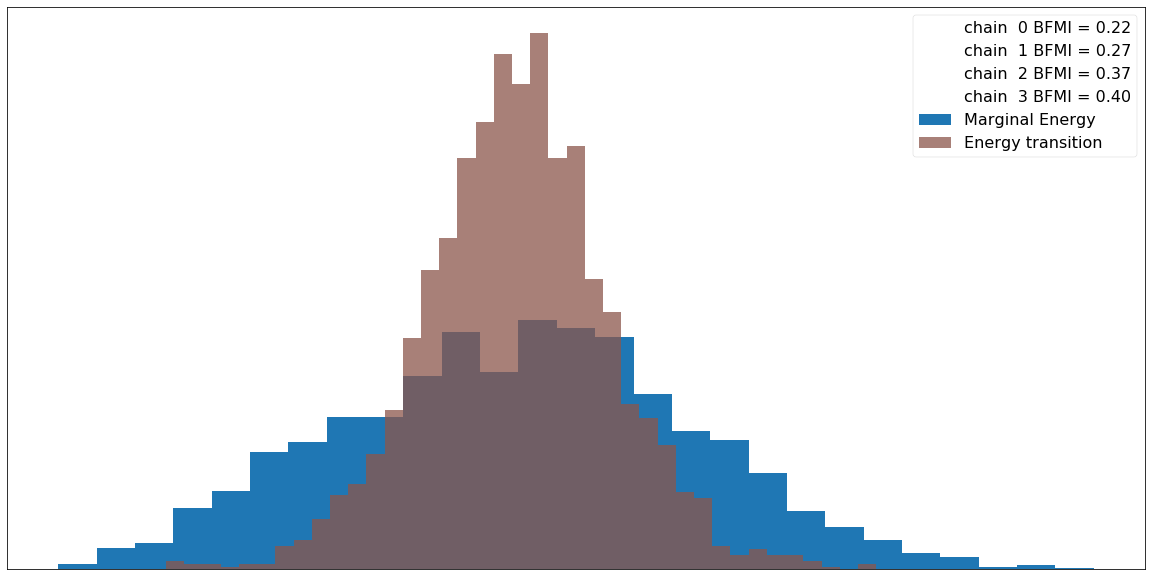

az.plot_energy(...)
Diagnostics

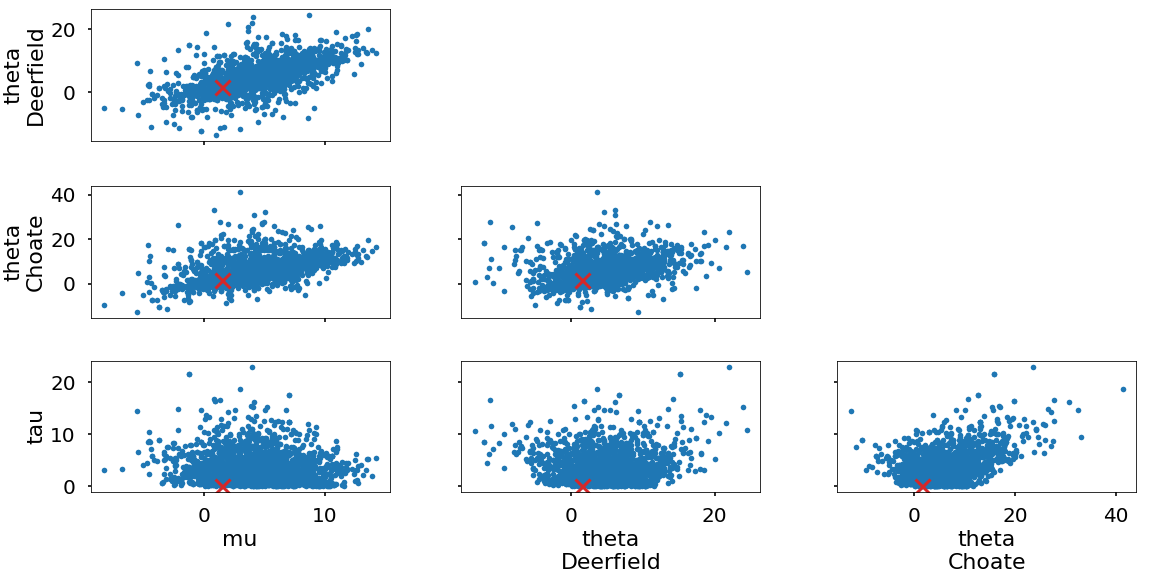

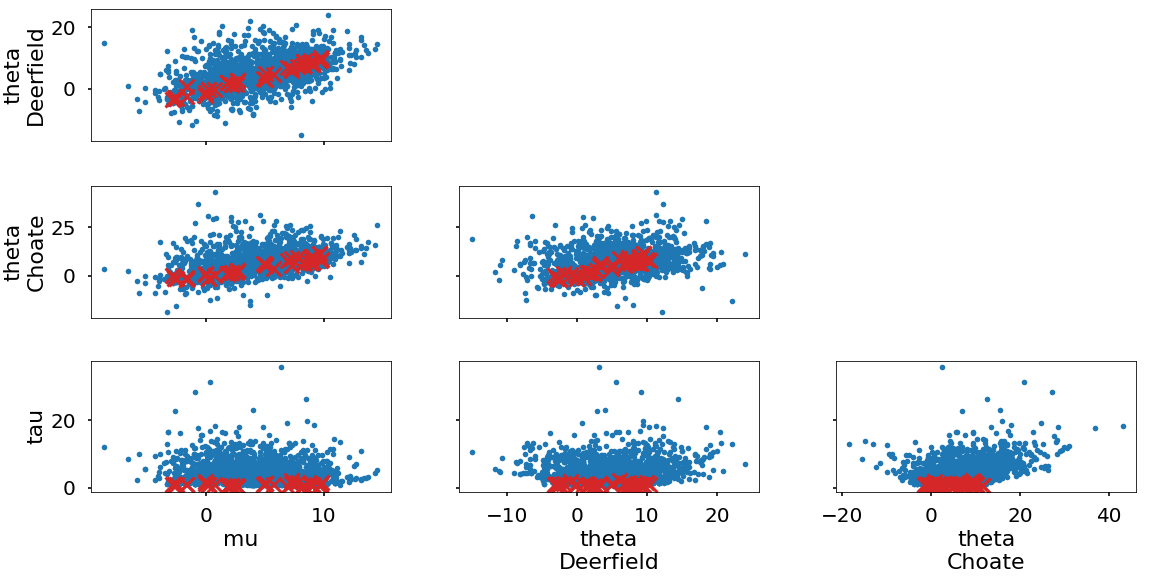

az.plot_pair(..., divergences=True)
Diagnostics

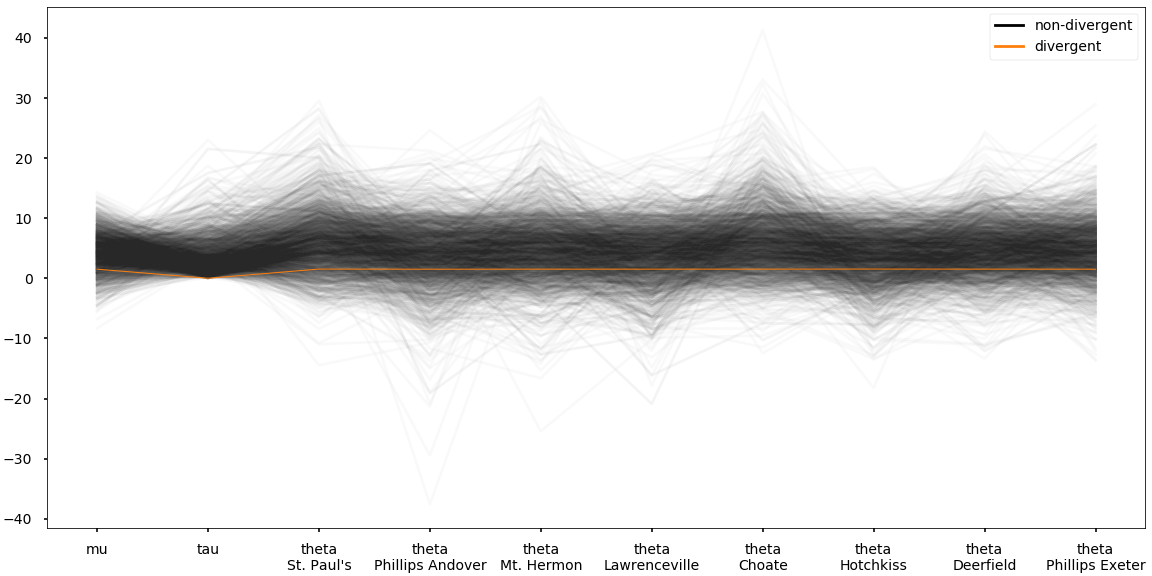

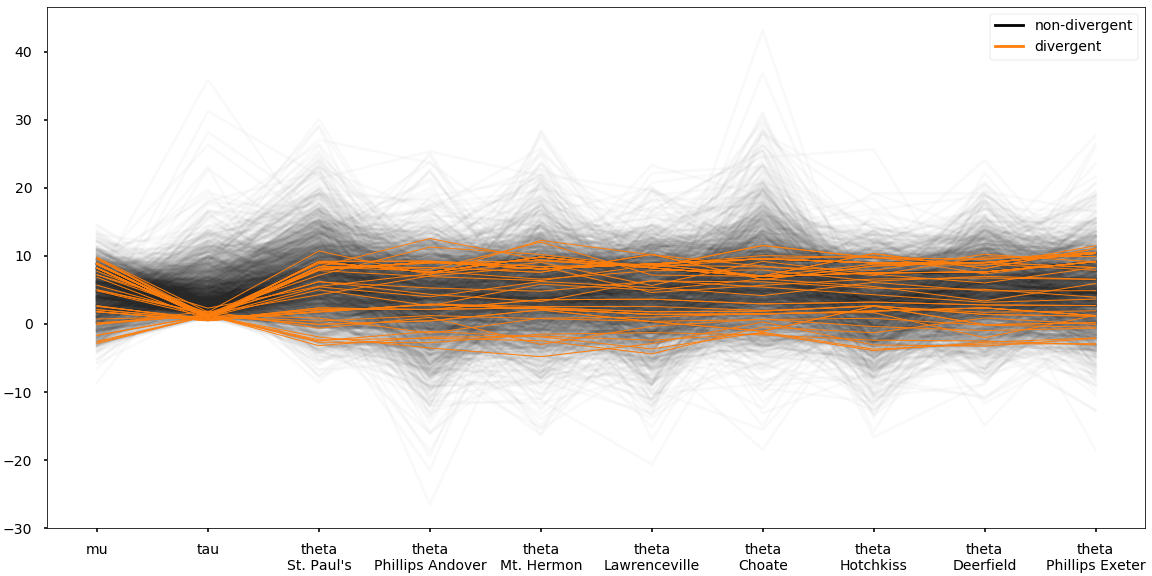

az.plot_parallel(...)
Diagnostics
az.summary(...)
|
mean |
sd |
mc error |
hpd 3% |
hpd 97% |
eff_n |
r_hat |
| mu |
4.52 |
3.31 |
0.09 |
-1.27 |
10.76 |
333.0 |
1.00 |
| tau |
4.44 |
3.37 |
0.34 |
0.75 |
10.38 |
71.0 |
1.05 |
|
mean |
sd |
mc error |
hpd 3% |
hpd 97% |
eff_n |
r_hat |
| mu |
4.23 |
3.41 |
0.05 |
-2.23 |
10.68 |
1918.0 |
1.0 |
| tau |
3.70 |
3.34 |
0.05 |
0.00 |
9.61 |
1291.0 |
1.0 |
How are Uncertainty Estimates Stored?
| Library
| Methods on fit object
| Favorite method name
| Can you save?
| Can you pickle?
|
| PyMC3 |
96 |
_old_theano_config |
Sort of |
Yes |
| PyStan |
46 |
module_bytes |
No |
Yes, with model |
| emcee |
59 |
_propose_stretch |
No |
Yes |
| Pyro |
42 |
_abc_negative_cache_version |
No |
If you delete some things |
We want pandas!
...high-dimensional pandas!
xarray
![]()
Inference Data
![]()
Inference Data
> az.load_arviz_data('centered_eight')
Inference data with groups:
> posterior
> sample_stats
> posterior_predictive
> prior
> observed_data
Inference Data
> centered_eight.posterior
Dimensions: (chain: 4, draw: 500, school: 8)
Coordinates:
* chain (chain) int64 0 1 2 3
* draw (draw) int64 0 1 2 3 4 5 6 7 8 ... 496 497 498 499
* school (school) object 'Choate' 'Deerfield' ... 'Mt. Hermon'
Data variables:
mu (chain, draw) float64 ...
theta (chain, draw, school) float64 ...
tau (chain, draw) float64 ...
Attributes:
created_at: 2018-10-05T15:28:15.577753
inference_library: pymc3
inference_library_version: 3.5
What does ArviZ work with?
az.from_pystan(...)
az.from_pymc3(...)
az.from_emcee(...)
az.from_pyro(...)
az.from_cmdstan(...)
az.from_tfp(...)
# works for all the above, and for
# numpy arrays and dictionaries
az.convert_to_inference_data(...)
Help!
az.load_arviz_data('...')
Thank You!
pip install arviz
![]()
